A Stripe Direct Account connects a customer’s own Stripe account directly to fusionCore, instead of routing payments through fusionSpan’s platform Stripe account (the “connected-account” model). In Salesforce, the connection is stored on a Payment Provider Account record (FCORE_PAY__Payment_Provider_Account__c, abbreviated PPA below). A Direct Account differs from a connected account in three ways the code enforces:
  • API calls go straight to the customer’s Stripe account, with no Stripe-Account header and no platform application fee.
  • The secret keys are looked up by a per-account prefix you set on the PPA.
  • The Direct model must be turned on through a feature parameter (a packaged on/off switch).
For newcomers: Stripe is the payment processor that actually charges the card when you take a payment on an order. A webhook is a URL that Stripe calls to push events (payment succeeded, refunded, customer created) back into your org.

​
Before You Begin

  • Both the Commerce package (FCORE_PAY) and the Stripe addon (FCORE_PSTRIPE) must be installed in the org.
  • The FCORE_PSTRIPE__EnableDirectStripeInstance feature parameter must be enabled for production. This is a packaged Boolean switch; contact fusionSpan support to have it turned on before you install or configure a live Direct Account. (Sandbox uses a different mechanism — see Step 4.)
  • You will need the customer’s Stripe publishable key (begins with pk_) and secret key (begins with sk_).
Ask the customer to create restricted keys rather than full-access keys. The restricted key must include the scope of the webhook events listed in step 7 of the Connected Account Webhook Set Up guide. Request and store any keys through a secure channel.

​
Configure a Stripe Direct Account in fusionCore

​
Step 1: Set the Prefix on the Payment Provider Account

The prefix tells fusionCore which secret records to read for this account.
1

Open the Payment Provider Account

Open the PPA record for the Stripe Direct Account you are configuring.
2

Set the Stripe MDT Prefix

Set the Stripe MDT Prefix field (FCORE_PSTRIPE__Stripe_MDT_Prefix__c) to a short value, for example FS.This field is not on the page layout by default. Add it to the layout, or set it with a Salesforce data tool, in order to populate it.

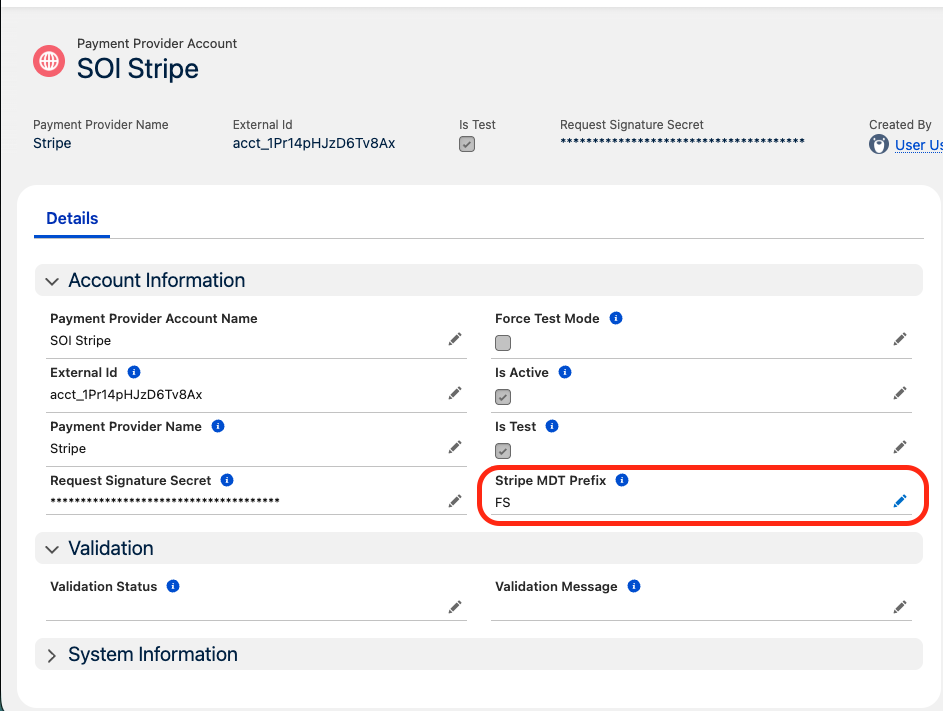

Payment Provider Account record showing the Stripe MDT Prefix field

Setting the Stripe MDT Prefix on the Payment Provider Account

​
Step 2: Create the Prefixed Secret Records

The customer’s Stripe keys are stored in protected Custom Metadata, not on the PPA record. Create one record for each key, named with the prefix you set in Step 1.
1

Open Payment Provider Secret

In Salesforce, go to Setup → Custom Metadata Types → Payment Provider Secret and click Manage Records.
2

Create the public key record

Click New. Name it [Prefix]_Stripe_Public_Key (for example, FS_Stripe_Public_Key) and paste the customer’s publishable key (begins with pk_).
3

Create the secret key record

Click New again. Name it [Prefix]_Stripe_Secret_Key (for example, FS_Stripe_Secret_Key) and paste the customer’s secret key (begins with sk_).
Pull both keys from the Stripe account that is connecting directly (Developers → Overview → API keys in the Stripe Dashboard). Request the keys from the customer and store them securely.

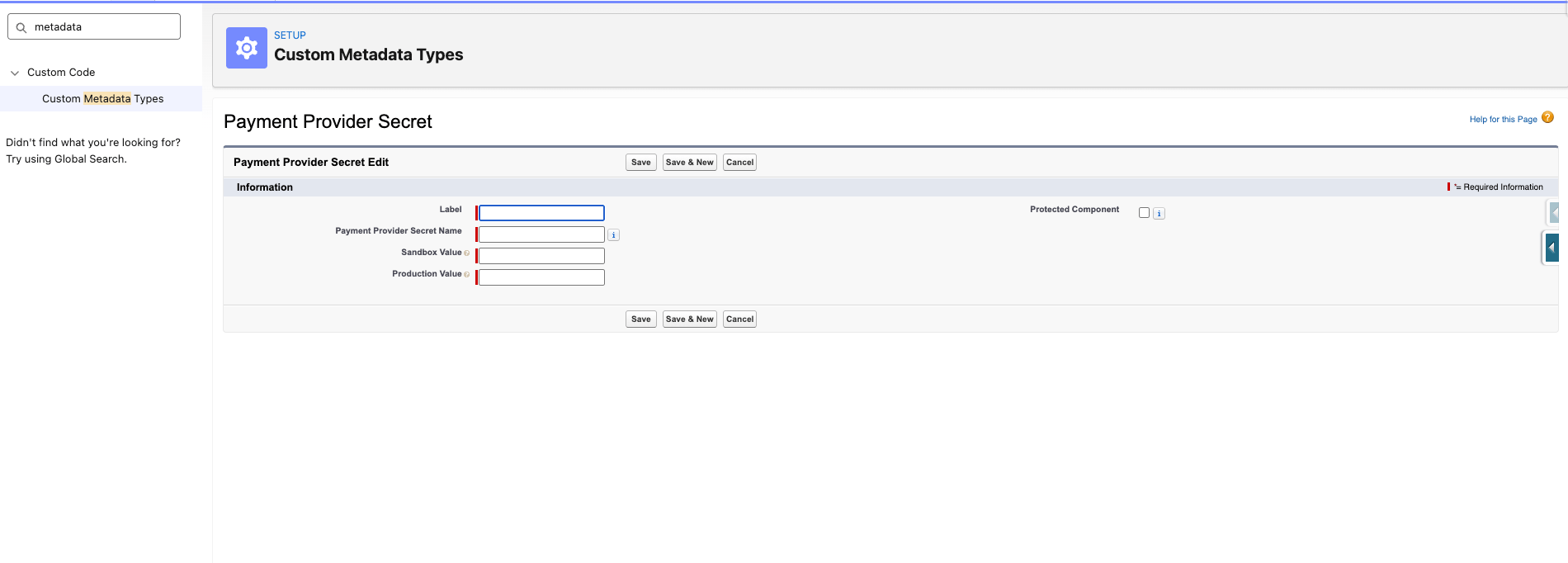

Payment Provider Secret Custom Metadata records named with a prefix for the public and secret keys

Creating the prefixed Payment Provider Secret records

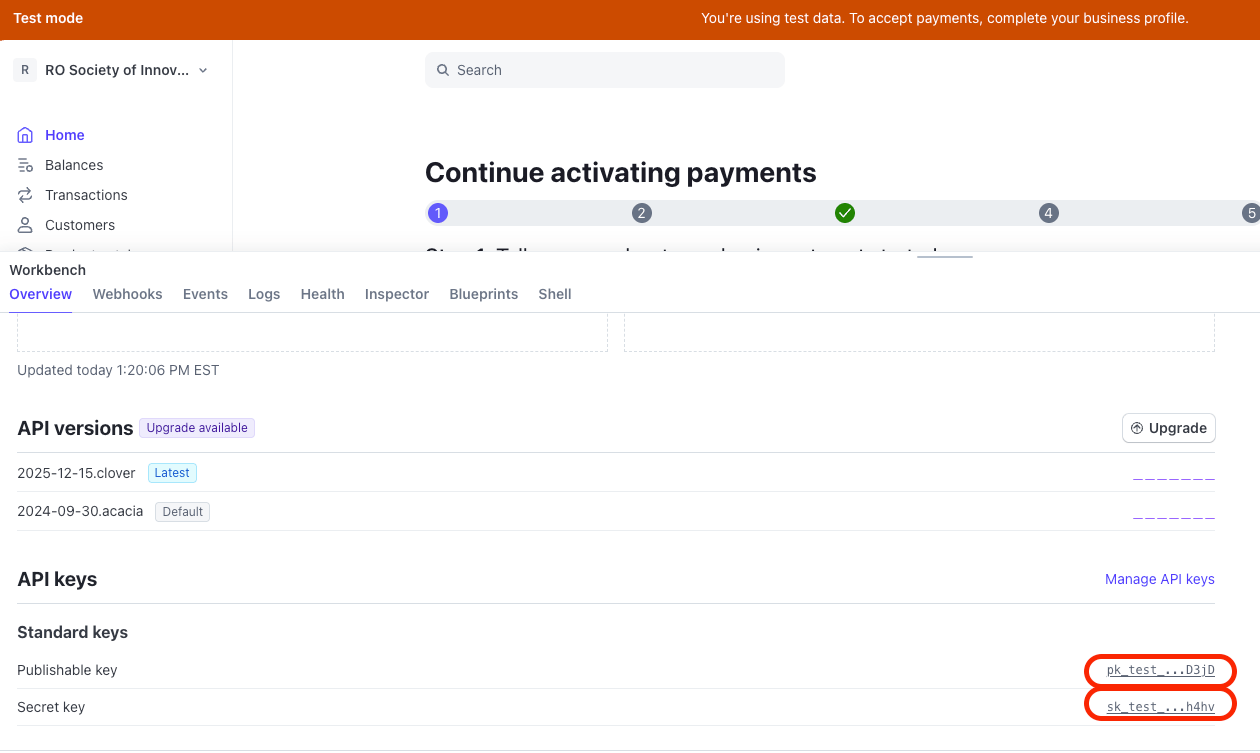

Stripe Dashboard Developers tab showing the publishable and secret API keys

Stripe API keys in the Developers tab

​
Step 3: Assign Permission Sets

Assign Stripe permission sets to the users who need them:
  • FC_Stripe_Manage — admins and configuration users who manage Stripe settings.
  • FC_Stripe_Access — staff who process payments.
  • FC_Stripe_Portal — portal users who pay through the portal.
  • FC_Stripe_Integration_User — any integration or automation user.

​
Step 4: Enable and Test the Direct Account Connection

How you turn on the Direct model depends on the environment. Production: the FCORE_PSTRIPE__EnableDirectStripeInstance feature parameter controls Direct mode. Confirm it is enabled (see Before you begin). The FS_Enable_Direct_Stripe_Instance constant described below is ignored in production. Sandbox: Salesforce does not reliably propagate feature parameters to sandboxes, so Direct mode is controlled by a constant instead.
1

Open Constants

Go to Setup → Custom Metadata Types → Constant and click Manage Records.
2

Find or create the constant

Search for Enable Direct Stripe Instance (FS_Enable_Direct_Stripe_Instance). If it does not exist, click New and create it with that label and API name.
3

Set it to true

Set the checkbox value to True and click Save.

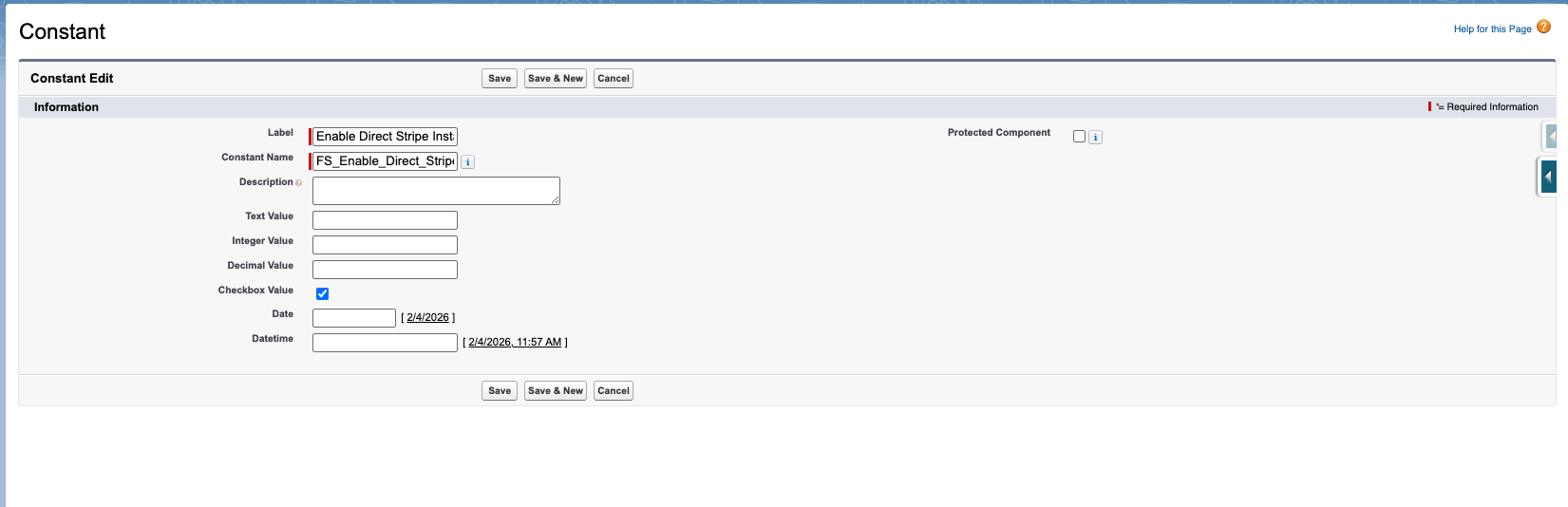

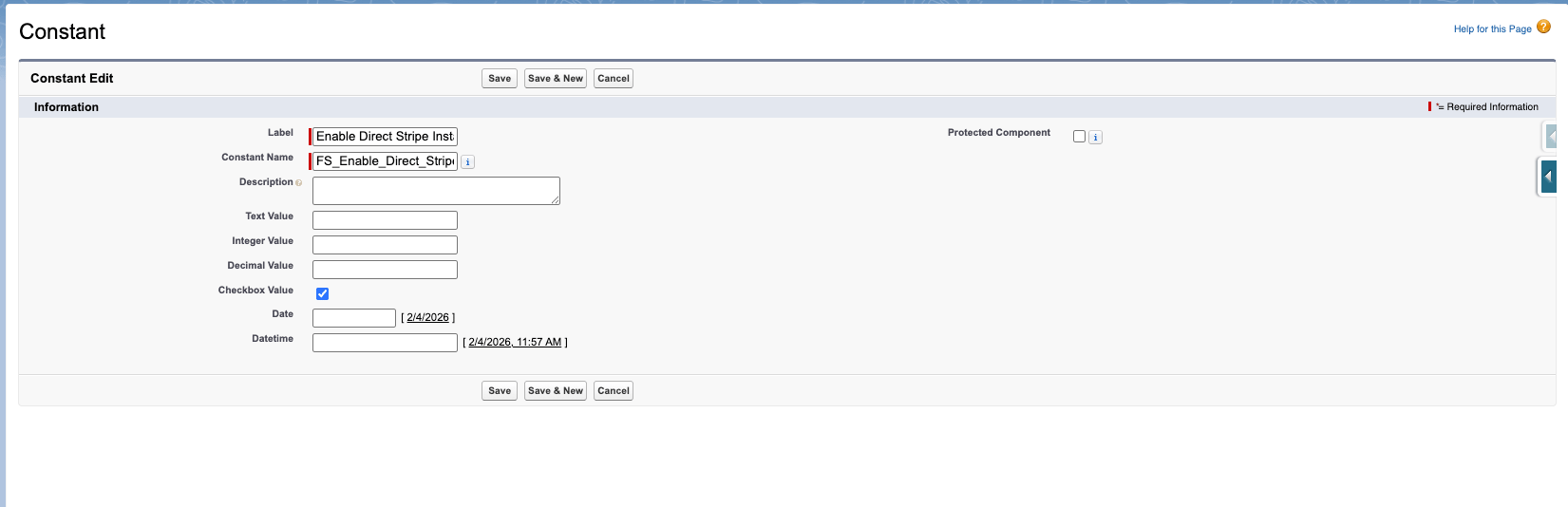

Constant Custom Metadata record FS_Enable_Direct_Stripe_Instance with its checkbox set to true

The FS_Enable_Direct_Stripe_Instance constant set to true

Once enabled, you test a Stripe Direct Account the same way you would a connected account. Set up the webhook (see Set up your webhook), then validate the PPA. Validation is asynchronous: clicking Validate sets the status to Pending, and the status flips to Succeeded only after Stripe’s customer.created or customer.updated webhook reaches the org. If validation fails, the reason appears in the Validation Message field (FCORE_PAY__Validation_Message__c).
Environment notes
  • Sandbox: when FS_Enable_Direct_Stripe_Instance is true, the org uses a direct connection even if the customer never requested it, because Salesforce does not propagate feature parameters to sandboxes. Stripe’s guide to creating a sandbox is here.
  • Production: the FS_Enable_Direct_Stripe_Instance constant is ignored; the feature parameter governs Direct mode instead.
  • Refreshes: keep the Stripe keys stored in production so they are retained after a sandbox refresh.

​
Set Up Your Webhook for a Direct Account

The webhook endpoint and the events to subscribe to are the same as for a connected account, but you log into the customer’s own Stripe account. Follow Setting up webhooks for your Salesforce org Stripe Direct Account. The endpoint URL is your Salesforce Site URL with /services/apexrest/FCORE_PSTRIPE/Stripe appended, and must contain no extra slashes or spaces — for example:
When you add the events, Stripe may automatically add payment_method.card_automatically_updated, so you can end up with 16 events instead of 15. This is expected.
After the webhook is in place, copy its signing secret (Stripe Dashboard: Developers → Webhooks → [your webhook]) into the Request Signature Secret field (FCORE_PAY__Request_Signature_Secret__c) on the PPA, then run Validate.

​
Supported Payment Types

Stripe Direct Accounts support these payment types. See Enabling payment methods in Stripe for how to turn them on.
  • Card
  • ACH
  • WeChat Pay
  • Alipay
Alipay and WeChat Pay are available only on Direct Accounts. On a connected-account setup, saving a payment type for these methods is blocked.

​
Pending Payments and Auto-Cancellation

When a member starts a Stripe payment, Stripe sometimes can’t finish charging immediately and puts the payment in a state called requires_action — it is waiting on the member to complete one more step:
  • Card → 3-D Secure (the bank’s “verify it’s you” challenge or one-time code).
  • ACH → microdeposit verification (confirming the two small test deposits in the bank account).
  • Alipay / WeChat Pay → an external redirect or approval in the wallet app.
In your org, that Stripe state shows up as a Payment Provider Event (FCORE_PAY__Payment_Provider_Event__c — the fusionCore record that mirrors one Stripe payment attempt) with status Action Required. If the member walks away and never finishes, the payment would sit in this status indefinitely. To keep abandoned attempts from lingering, the scheduled FC: Payment Provider Event Validation batch re-checks every payment still in requires_action and cancels it in Stripe once a method-specific timeout passes. When it cancels the payment (with the reason abandoned), the Payment Provider Event status becomes Cancelled. These thresholds are FCORE_BASE__Constant__mdt Custom Metadata records. You can change them without code in Setup → Custom Metadata Types → Constant → Manage Records.
Cancellation happens on the next batch run after the timeout is exceeded, so the real delay also depends on how the batch is scheduled (daily by default). Revalidating the order from the pay screen can trigger the check sooner. See Scheduled Jobs in fusionCore for this batch’s schedule and how to manage it.

​
Limitations and Common Pitfalls

  • A prefix is required. With Direct mode on, leaving Stripe MDT Prefix blank throws “Stripe MDT Prefix is blank on Payment Provider Account.” The matching [Prefix]_Stripe_Public_Key and [Prefix]_Stripe_Secret_Key records must exist, or callouts fail with “Payment Provider Secret Not Found” / ”…Is Blank.”
  • Validation completes only after the webhook fires. Clicking Validate does not by itself set Succeeded — it waits for Stripe’s inbound customer.created / customer.updated webhook. If the webhook is misconfigured, validation never completes even when the keys are correct. The customer event is also ignored unless it arrives within about 10 seconds of clicking Validate.
  • Editing key fields resets validation. Changing External Id (FCORE_PAY__External_Id__c), Request Signature Secret (FCORE_PAY__Request_Signature_Secret__c), or Stripe MDT Prefix clears the validation status. You must re-run Validate.
  • External Id must be unique. Two PPAs sharing the same FCORE_PAY__External_Id__c throws “Multiple Payment Provider Accounts were found with the same External Id.”
  • Do not toggle Direct mode on a live account. Switching the EnableDirectStripeInstance feature parameter changes call routing, application fees, and which secret records are read. Re-key and re-validate before relying on a flipped account.
  • Failed webhooks are easy to miss. If the Stripe-Signature header is missing or its HMAC-SHA256 signature does not match, or the request is older than 300 seconds, or the event’s sf_org_id does not match this org, the endpoint returns HTTP 204 and skips the event. Stripe sees a success response and does not retry. Check the Stripe_API_Log__c records if events seem to be dropped.
  • Pending payments auto-cancel. Payments a member never finishes are cancelled after a method-specific timeout. See Pending Payments and Auto-Cancellation above.
