The fields shown on the checkout page come from field sets, and the checkout page chooses a field set based on the customer type (individual or organization) and on whether the user is paying an Order or a single installment. Each of those four field sets is named in a FCORE_BASE__Constant record, so changing the fields at checkout is a two-part idea: edit a field set to change which fields appear, or edit a Constant’s value to point checkout at a different field set.

​
The Checkout Field Set Constants

Four Constant records map a checkout scenario to a field set: Each Constant’s value (Text_Value__c) holds the API name of the field set to use.
These four field sets ship with the Portal Components package, so they already exist once it is installed — you do not create them. Their shipped definitions are intentionally minimal (for example, the individual-order field set contains only the order number), so you will usually extend them with the fields you want shown at checkout.

​
Prerequisites

  • Access to Custom Metadata Types and to the field set editor on Order and FCORE_PAY__Financial_Event__c in Setup.

​
How to Change the Fields at Checkout

1

Edit the checkout field set

Open the Object Manager entry for Order (or FCORE_PAY__Financial_Event__c for installment checkout), then open Field Sets. Edit the shipped fusionCore checkout field set named in the Constant, adding the fields you want to show. (The field sets ship with the package — you extend them rather than create them.)

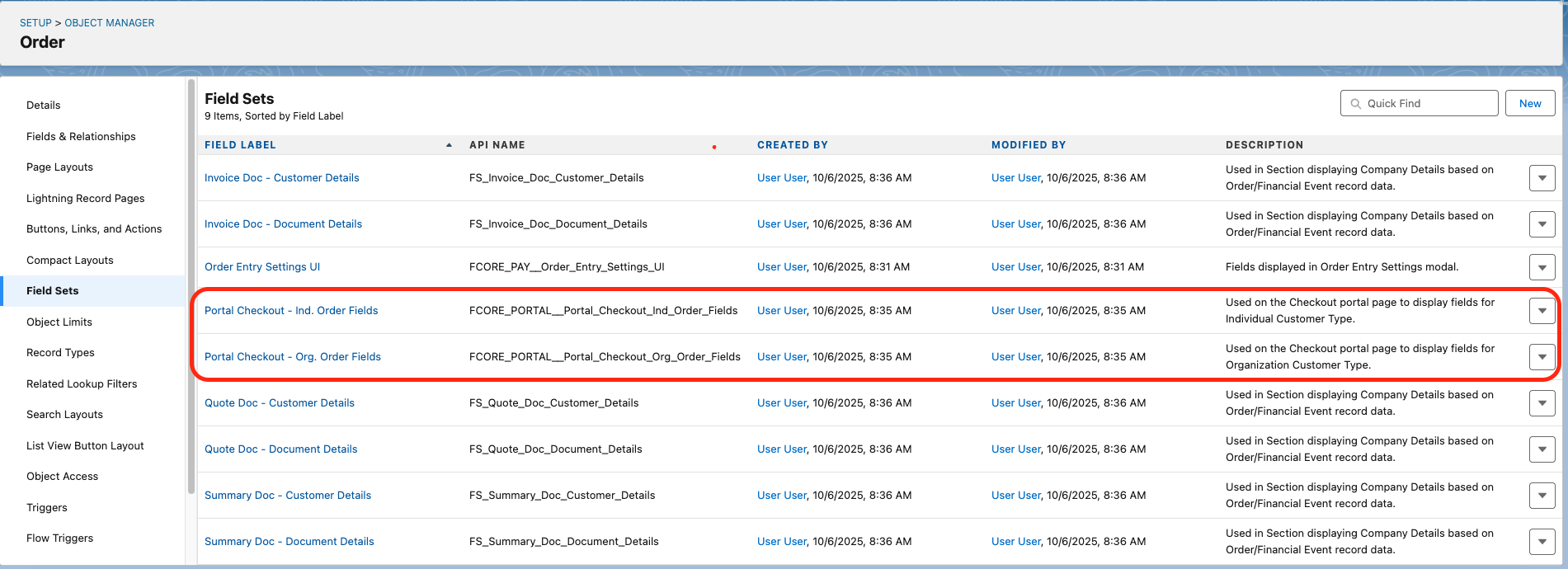

The field set editor on the Order object showing the checkout fields

A checkout field set on the Order object

2

Open the Portal checkout Constants

In Setup, go to Custom Metadata Types, click Manage Records next to Constants, and locate the Portal checkout Constants listed above.

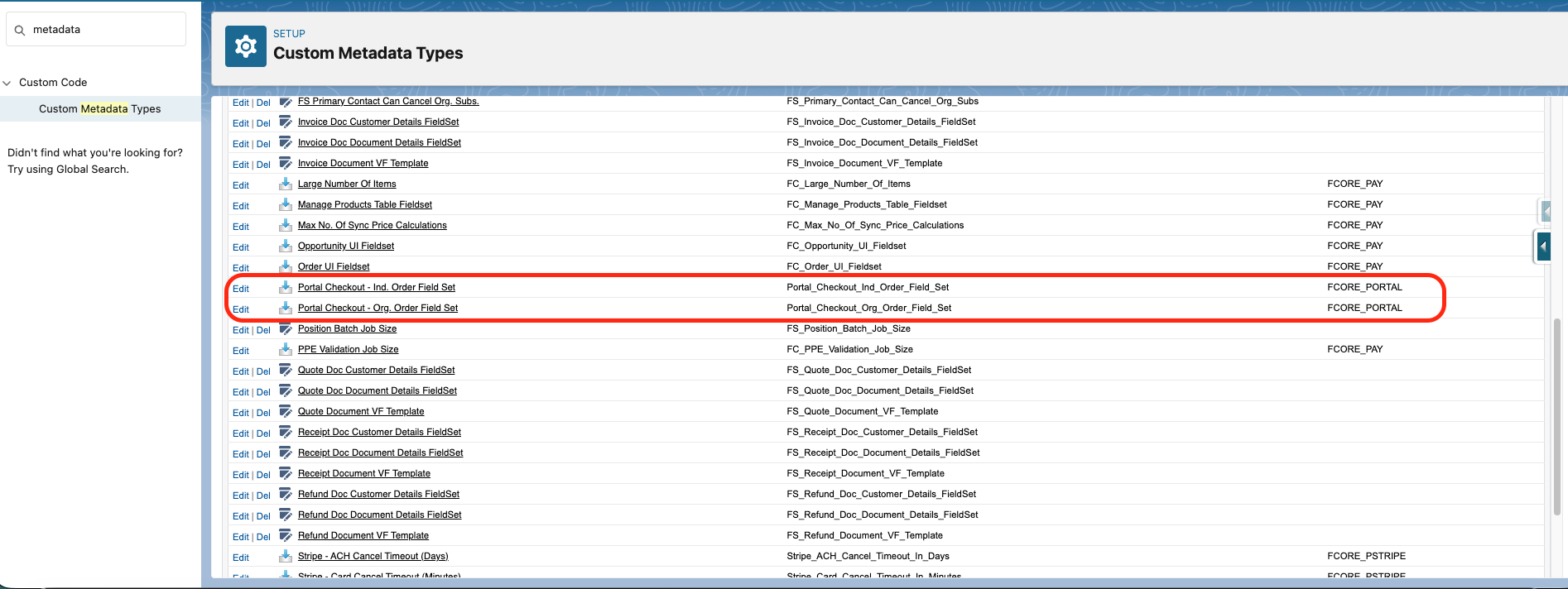

The list of Portal checkout Constant records in Custom Metadata Types

The Portal checkout Constant records

3

Point the Constant at your field set

Open the Constant for the scenario you want to change, enter the API name of your field set in the value field, and click Save. Checkout will now render the fields from that field set for that scenario.

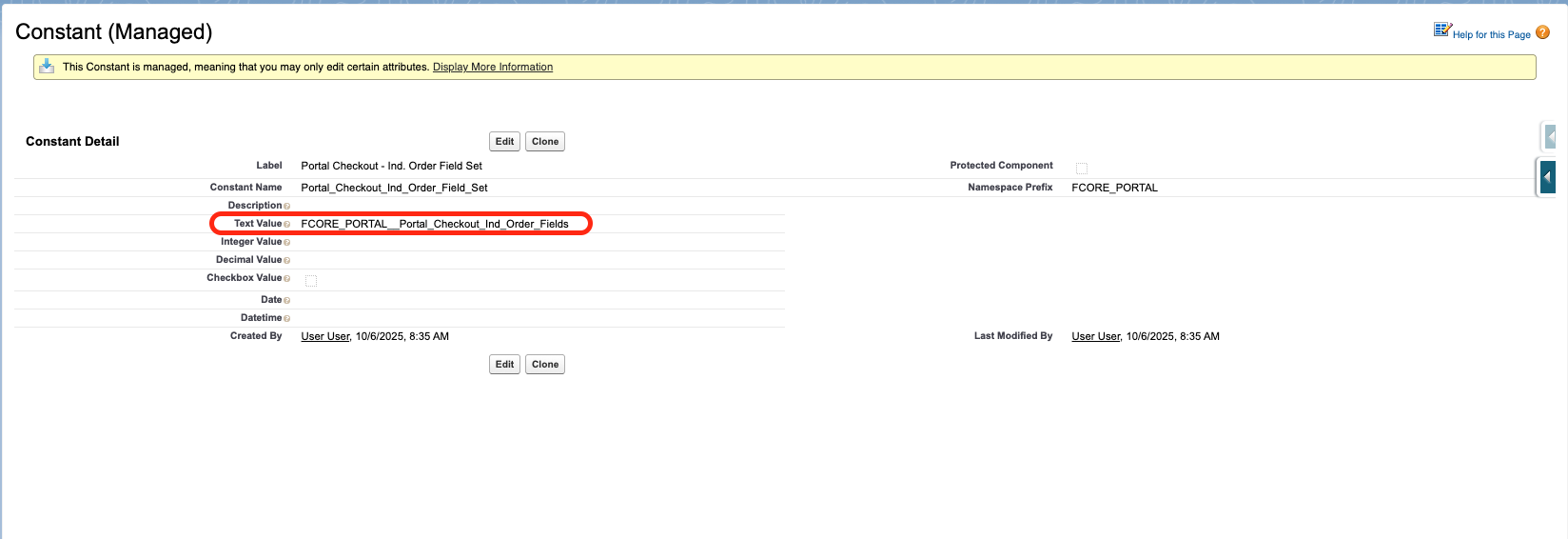

A Portal checkout Constant record with a field set API name entered

Setting the field set API name on a checkout Constant

4

Test the result

Open the checkout page as the relevant customer type and confirm the expected fields appear. Test both an individual and an organization customer if you changed those scenarios.
Use the individual and organization Constants to build checkout variations for different audiences — for example, showing different fields to members versus non-members.

​
Limitations and Common Pitfalls

  • The Constant value must be a valid field set API name on the matching object. If the named field set does not exist on Order (or FCORE_PAY__Financial_Event__c), the wrong scenario’s fields — or none — appear at checkout. Verify the field set exists before saving the Constant.
  • Order field sets and Financial Event field sets are not interchangeable. The Order Constants drive full-Order checkout; the Financial Event (_FE_) Constants drive single-installment checkout. Editing the wrong pair will not change the page you are looking at.
  • Always test after a change. A field added to the field set but not visible at checkout usually means you edited the field set referenced by a different Constant than the scenario you are testing.
