Create an online (Stripe) Payment Type, then take and refund Stripe card and ACH payments from within Salesforce.
A Payment Type is a configuration record (Payment_Type__c) that tells fusionCore how money can move for a Business Unit (Business_Unit__c, a branded operating division of your organization). An online Payment Type connects that method to Stripe through a Payment Provider Account (Payment_Provider_Account__c) so card and ACH payments can be processed.Stripe Payment Types support Card and ACH payment methods, can be shown in Portal, and can be saved by members as reusable wallet items (a stored card or bank account).
Open the Business Unit and start a new Payment Type
Navigate to the Business Unit for which you want to create the Payment Type, then click New on the Payment Types related list.

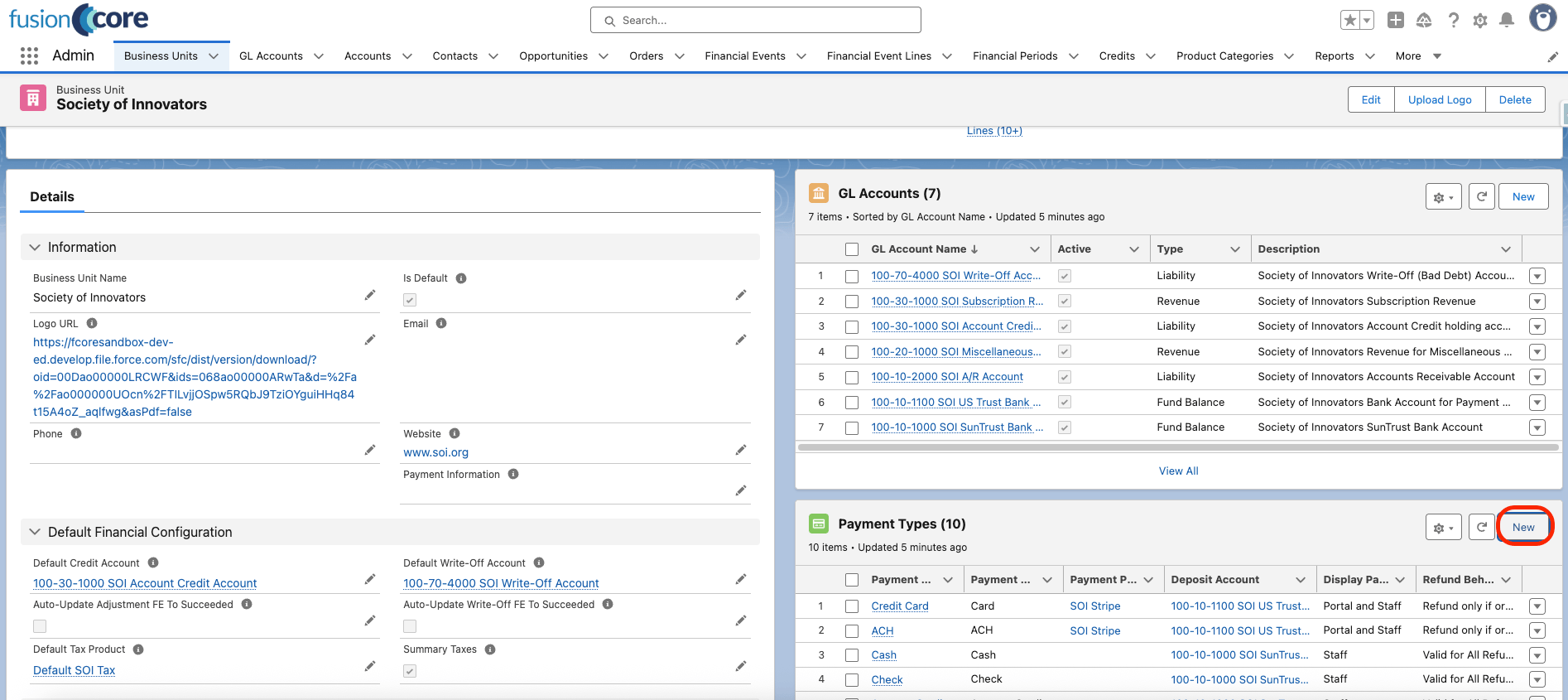

New on the Payment Types related list
2
Choose the Payment record type
Select Payment as the record type, then click Next.The Payment record type (FC_Payment) is a payment option offered at checkout. The Wallet Item record type (FC_Wallet_Item) represents a saved payment method; you do not create those directly here.

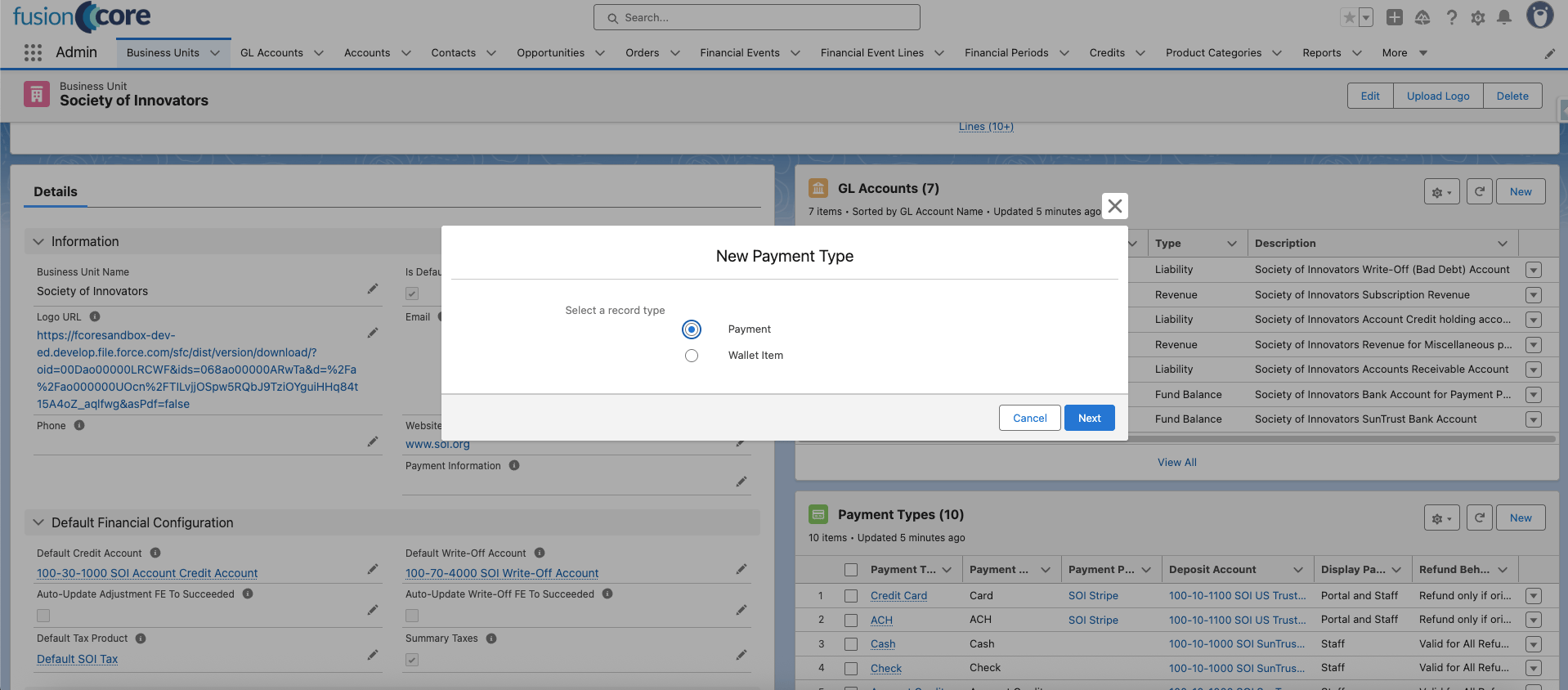

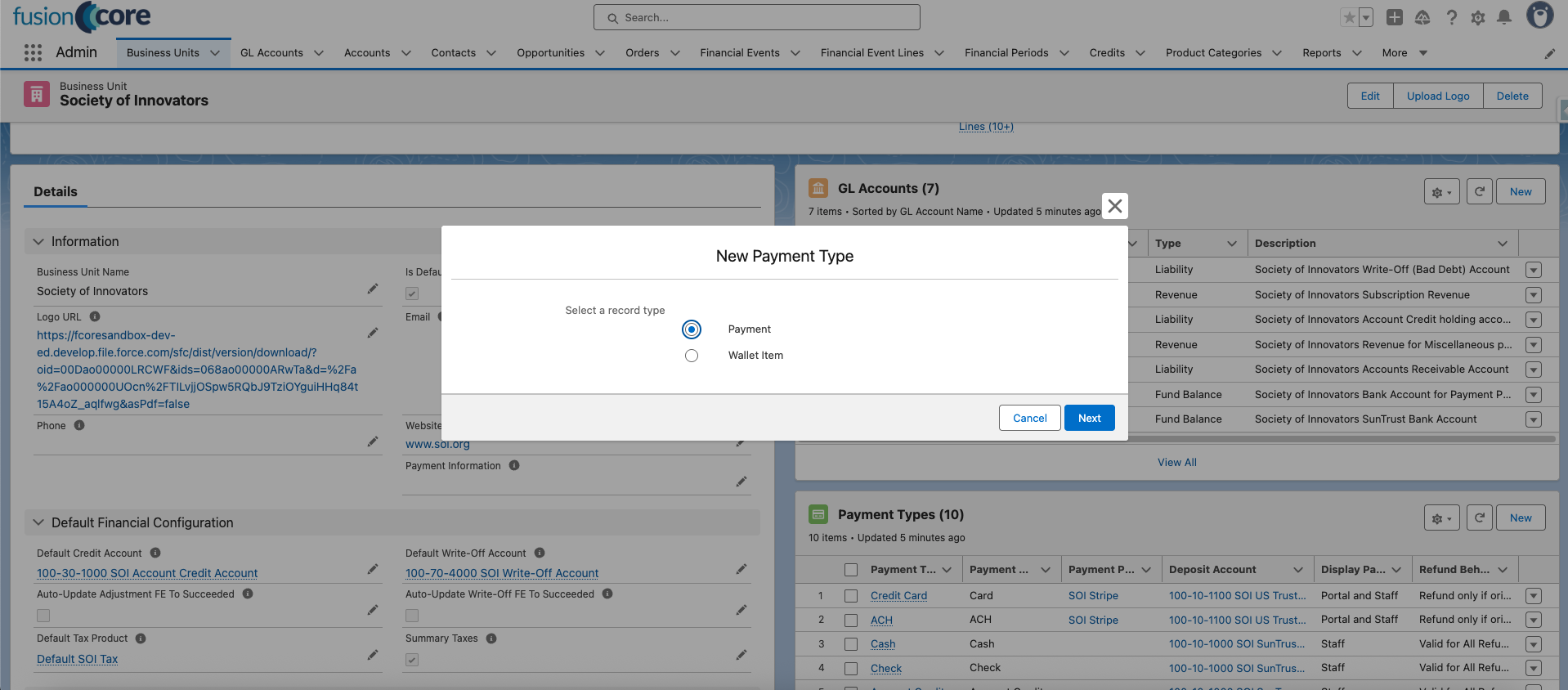

Select the Payment record type
3
Fill in the core fields
At a minimum, define the following to make a Stripe Payment Type functional:
Payment Type Name — a descriptive name, for example Society of Innovators Credit Card or Society of Innovators ACH.
Payment Provider Account (Payment_Provider_Account__c) — the Stripe provider account this Payment Type uses. This is required for Stripe.
Business Unit (Business_Unit__c) — the operating division this Payment Type belongs to.
Payment Method (Payment_Method__c) — for Stripe this is Card or ACH.
Deposit Account (Deposit_Account__c) — the GL account (GL_Account__c) that receives the funds. The lookup only shows GL accounts that belong to the same Business Unit.
Display Payment Type (Display_Payment_Type__c) — where the Payment Type appears. The full list of values is Portal and Staff, Portal, Staff, and Disabled. Only Staff and Portal and Staff appear in the staff pay and refund screens.
Refund Behavior (Refund_Behavior__c) — how the Payment Type handles refunds. The full list of values is Cannot Refund, Refund only if original payment, and Valid for All Refunds. For Stripe, use Refund only if original payment.
Staff Order (Staff_Order__c) — the sort position of this Payment Type in the staff payment-method dropdown.
You can set the remaining fields later as needed.
Set Supported Currencies (Supported_Currencies__c) only in a multi-currency org. Leaving it blank supports all currencies. In a multi-currency org, a non-empty list that omits the order’s currency silently hides the Payment Type from the pay screen.

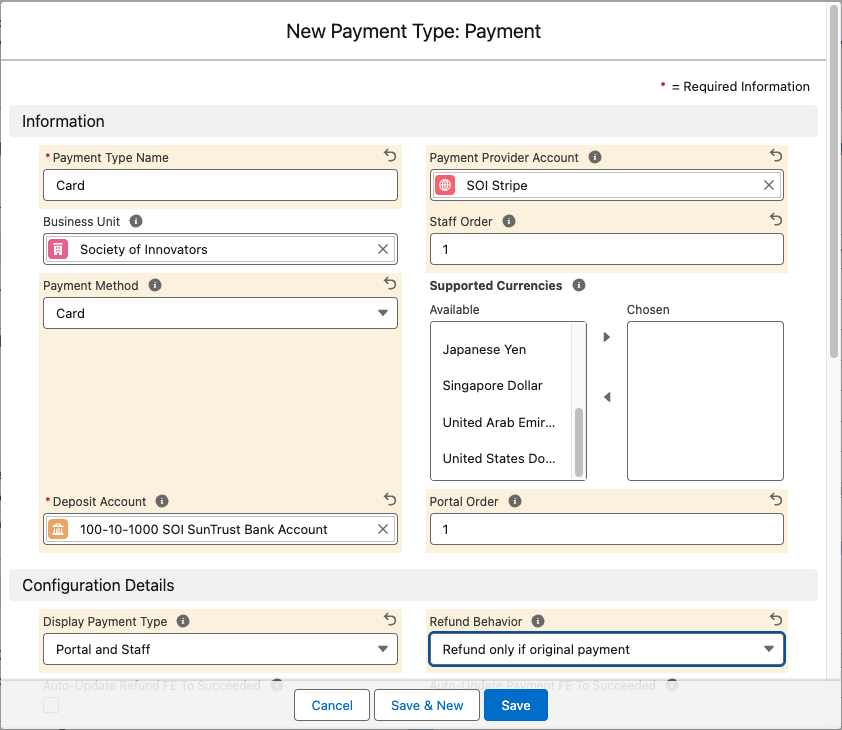

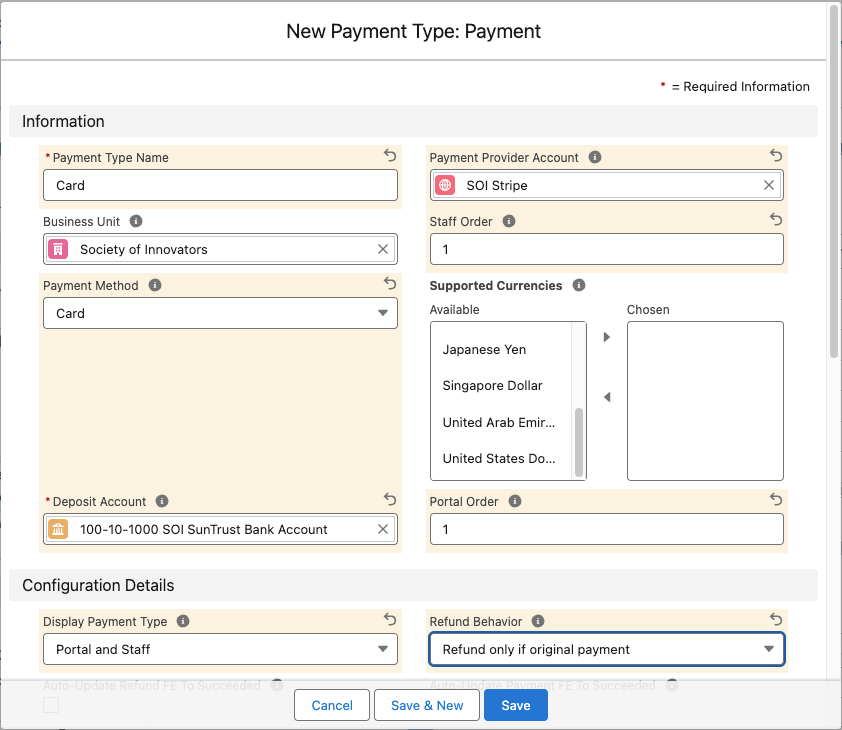

Core fields on a Stripe Payment Type
4
Set the System Information components
The System Information section points the UI at the Lightning Web Components (Salesforce front-end components) that render at pay, refund, and wallet time. For a Stripe Payment Type, set all three:
Populate all three components on the Card or ACH record you are setting up. If any is missing, errors will occur, and wallet item functionality will not work if Wallet Item Component is left blank.

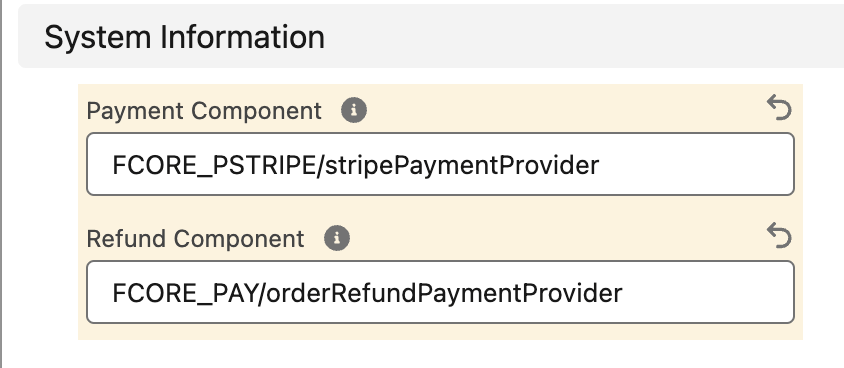

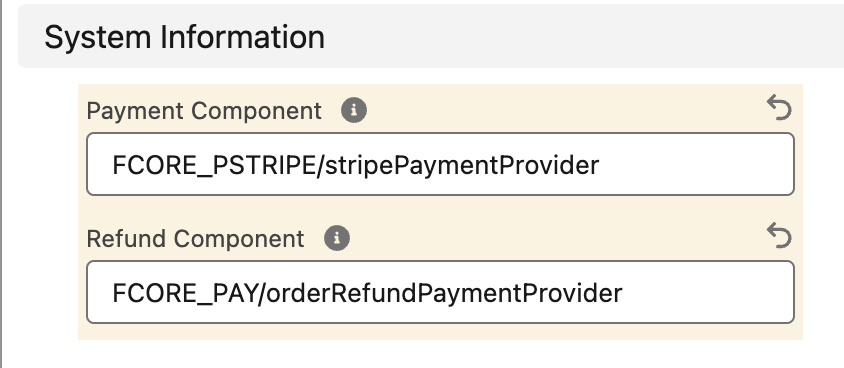

System Information components for a Stripe Payment Type

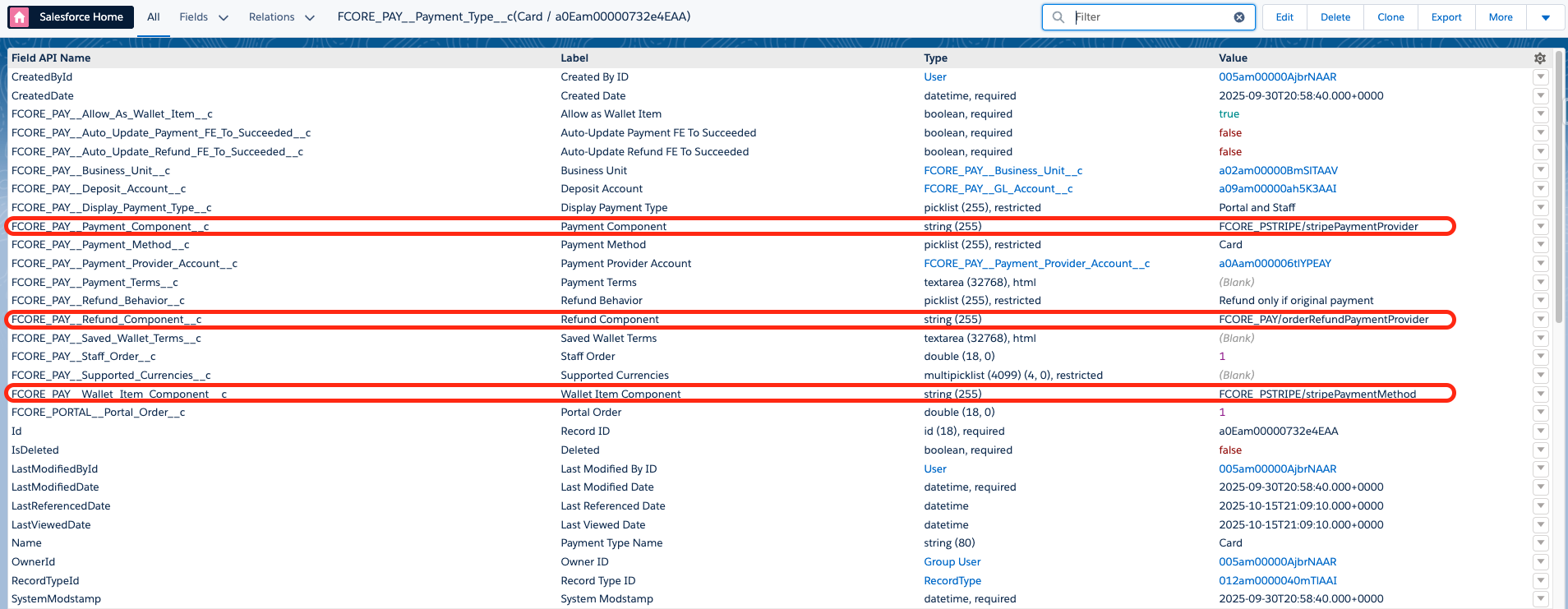

Stripe Payment Type record after the components are set
These component fields do not appear on the Payment Type layout by default. Use a Salesforce field-inspection tool, or add the fields to the page layout, to view and edit them.
Once your Stripe Payment Type is set up, you can take card and ACH payments and issue refunds directly inside Salesforce, so you do not have to switch to an external payment console or re-key data by hand. This section walks you through paying an Order with Stripe and refunding a payment after the fact.When a Stripe payment succeeds, fusionCore creates a Financial_Event__c record with Financial Event Lines (the accounting record of the money received), plus a parallel Payment_Provider_Event__c record with its own lines (the record of what Stripe did). The same pairing happens for refunds.
Complete the Stripe setup steps in Stripe before you take any payments. A missing or incorrect Stripe webhook causes payments to error or fail.
Confirm a Stripe Payment Type exists for the Business Unit you are paying against (see the setup steps above).
To take payments as a staff user, you need the FC_Commerce_Order_Pay and FC_Stripe_Access permission sets. To issue refunds, you also need FC_Commerce_Refund.
Click the App Launcher and search for Order, then open the Orders list.

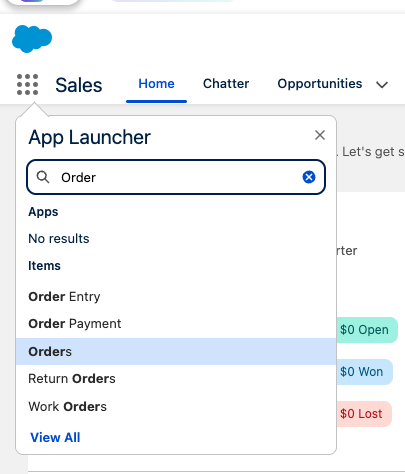

App Launcher search for Order
2
Select an Order
In the Orders list view, select the Order you want to pay.

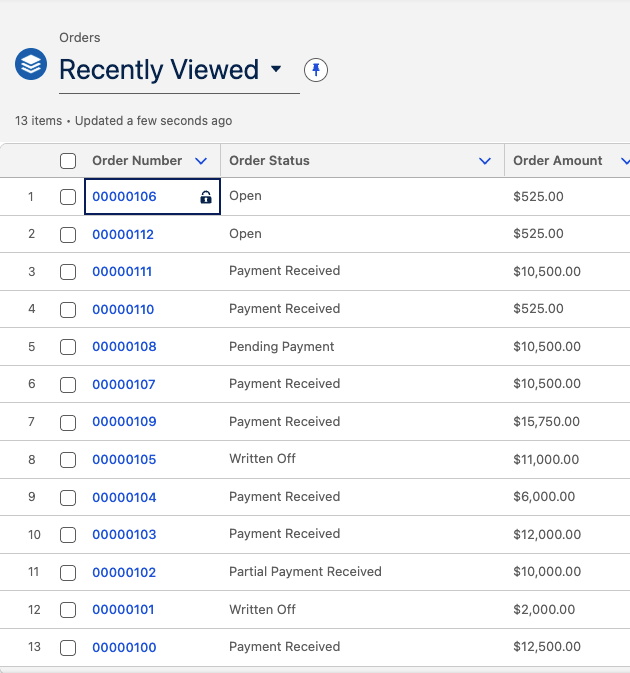

Orders list view
3
Start the payment
On the Order record page, choose how you want to pay:
To pay as a staff user, click Pay Order.
Pay Order quick action on the Order record
To pay as a portal member, click the Portal Checkout URL link.

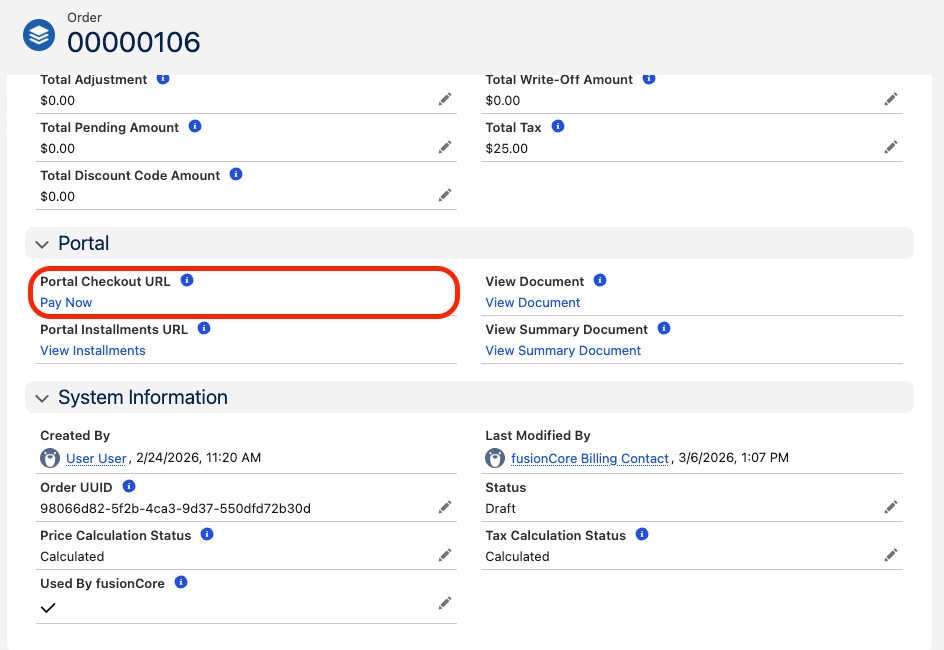

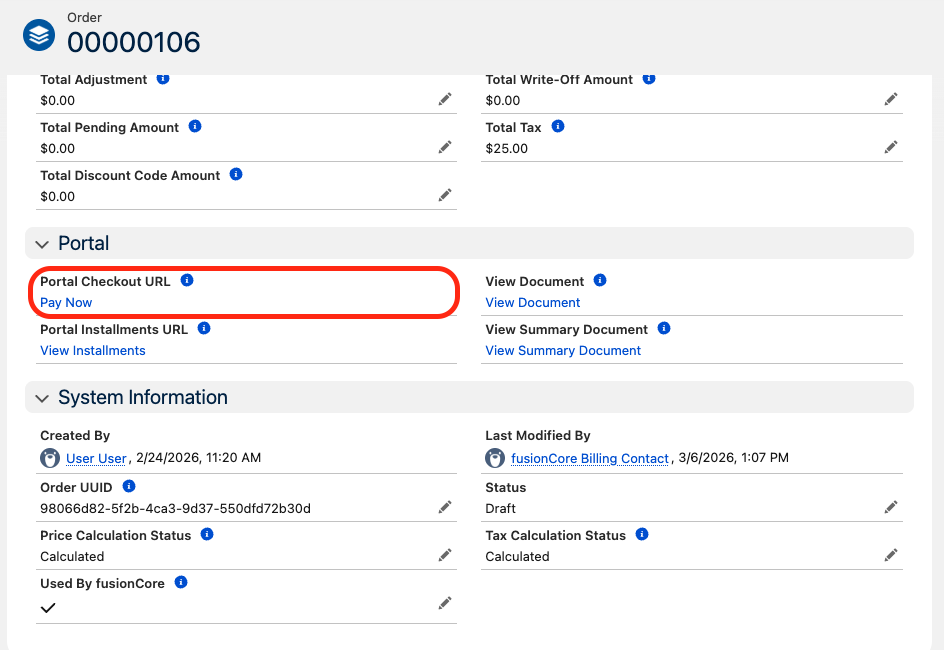

Portal Checkout URL link on the Order record
4
Choose a Stripe payment method
When the checkout interface opens, select a Stripe payment method (Card, ACH, or a saved Wallet Item), then fill out the payment details if prompted.

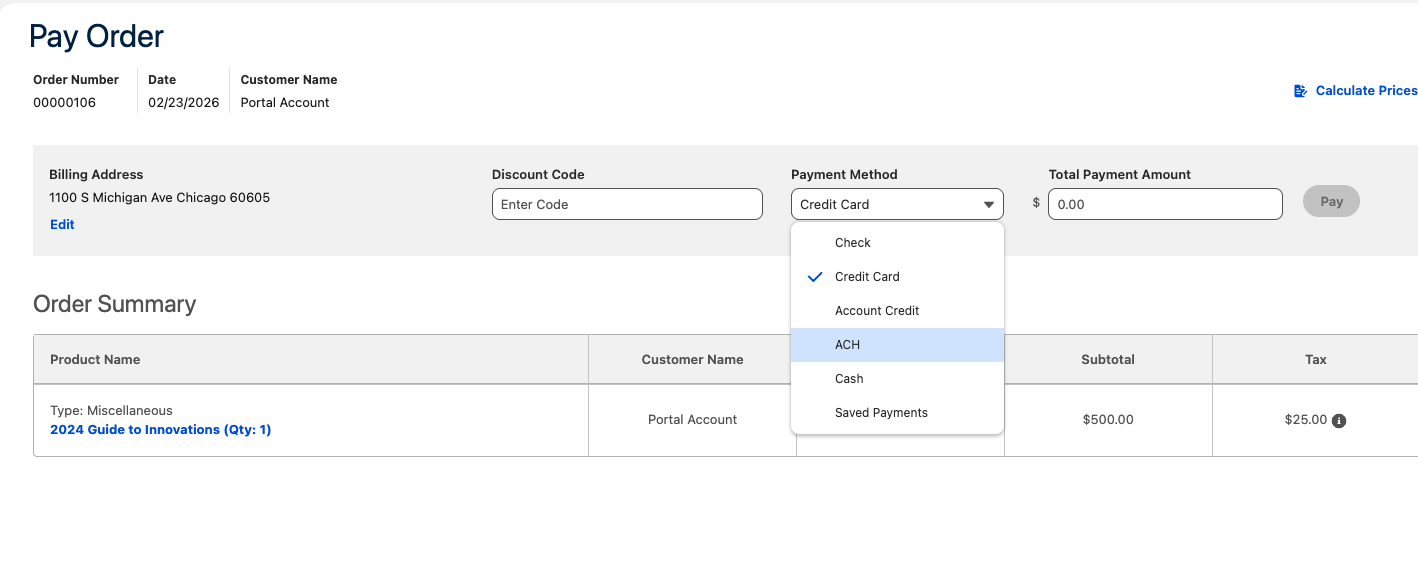

Checkout interface with payment method options

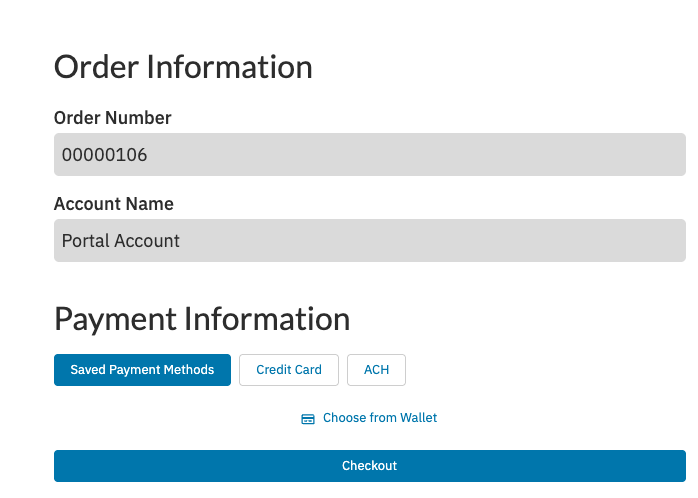

Entering payment details

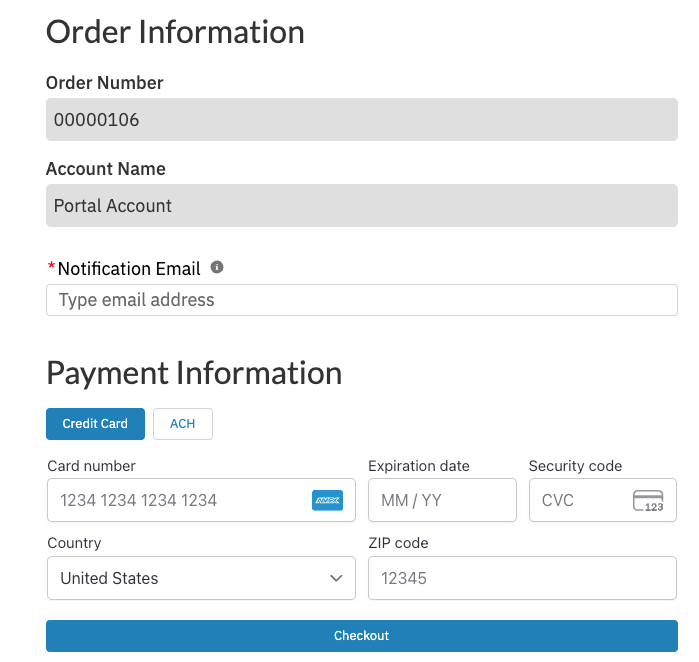

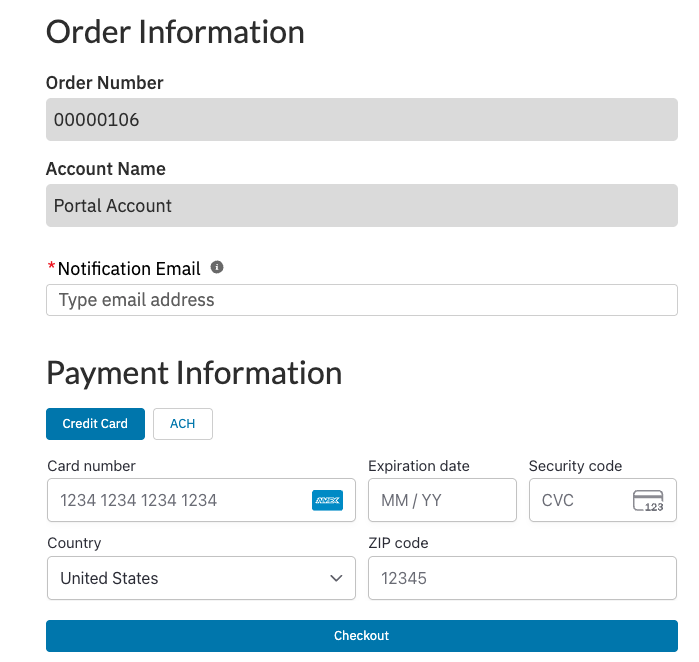

Checkout interface ready to submit
5
Submit the payment
As a staff user, enter the amount to pay. To pay an Order partially, set the amount to pay on each Order Line, then click Pay.
As a portal member, click Checkout.
6
Confirm the result
Once the payment is processed, fusionCore creates a Financial_Event__c record with Financial Event Lines, plus a parallel Payment_Provider_Event__c record with its own lines.
From the Financial Events related list on the Order record page, select the Financial Event you want to refund.
2
Start the refund
On the Financial Event record, click the Refund button in the top right.
3
Enter the refund details
When the refund interface opens:
Enter a Refund Amount.
Next to Choose Method, select the payment method for the refund:
Original payment method (Card or ACH, depending on how the original payment was tendered) — no further input is required.
Check or Cash — enter a Reference Number and a Date.
Account Credit — confirm the Account, Contact, Date, Credit GL Account, and Customer Type.
4
Process the refund
Click Process Refund.
To refund back to the original Stripe payment method, the related Payment Type must have Refund Behavior (Refund_Behavior__c) set to Refund only if original payment. A Stripe Payment Type cannot use Valid for All Refunds.
Stripe refunds are processed asynchronously. The result is not instant in the UI: it appears once the background job finishes and Stripe’s webhook reconciles the outcome back to the Payment_Provider_Event__c. A refund can also partially fail, in which case the provider event is marked failed with an error message rather than throwing an error on screen.
These rules are enforced when you save the record. Because they run in Apex, they do not appear under Setup > Validation Rules; instead, save fails with an on-screen error.
Card and ACH require a Payment Provider Account. Saving a Stripe Payment Type with method Card or ACH fails unless Payment Provider Account is set.
Do not combine Valid for All Refunds with a provider account. A Stripe Payment Type with a Payment Provider Account cannot use Refund_Behavior__c = Valid for All Refunds; save is blocked. Use Refund only if original payment instead — provider-backed refunds flow back through the original payment.
Auto-succeed checkboxes are incompatible with a provider account. When a Payment Provider Account is set, you cannot enable Auto-Update Payment FE To Succeeded (Auto_Update_Payment_FE_To_Succeeded__c) or Auto-Update Refund FE To Succeeded (Auto_Update_Refund_FE_To_Succeeded__c). Those shortcuts are only for offline methods like cash or check; Stripe events get their real status from the provider.
Saving a card or bank account as a wallet item is restricted. To allow a method to be saved as a wallet item (Allow_As_Wallet_Item__c), the method must be Card or ACH, and a Payment Provider Account must be set.
You cannot edit a Payment Type that already has live wallet items. If any member has saved a wallet item against this Payment Type, you cannot change its payment method, Payment Provider Account, or the wallet-item setting. Migrate or remove the wallet items first.
One wallet-item Payment Type per Business Unit and provider account. A given combination of Business Unit and Payment Provider Account can have only one wallet-item Payment Type.
Wallet Item records require Business Unit and Payment Provider Account. On the FC_Wallet_Item record type, both Business Unit and Payment Provider Account are mandatory.
Installments need a wallet-eligible Stripe method. Installment payments require an active Payment Provider Account and a wallet-eligible method (Card or ACH). A method that is not provider-backed and wallet-eligible — such as Cash or Check — does not appear for installments, even if it works for one-time orders.
Alipay and WeChat Pay need “Direct Stripe” enabled. These methods are only available on Stripe Payment Types when the EnableDirectStripeInstance feature parameter is on. Connected-account (non-direct) Stripe orgs cannot use them.
Sandbox and production accounts do not mix. A sandbox is a non-production copy of your org used for testing. A live Stripe Payment Provider Account does not appear in a sandbox, and a test account does not appear in production. The Payment Type is hidden unless the provider account’s environment matches. If your Stripe method is missing, confirm you are using an account that matches the environment.
A payment method can silently disappear in a multi-currency org. If the Payment Type lists Supported Currencies (Supported_Currencies__c) and that list omits the Order’s currency, the method is hidden from the pay screen. Leave the list empty to support all currencies. (Currency filtering only applies in multi-currency orgs.)
Wallet Item payments need all three Stripe components configured. If the saved-method (Wallet Item) component is not set on the Card or ACH Payment Type, saved payment methods will not work at checkout.
The deposit GL account cannot be deleted while referenced. You cannot delete a GL_Account__c that any Payment Type uses as its Deposit Account; reassign first.
Refunds are constrained by the original payment. At refund time, fusionCore offers only the original Payment Type (when its behavior is Refund only if original payment) or Business-Unit Payment Types set to Valid for All Refunds, filtered to Staff/Portal and Staff display and supported currency. Cannot Refund types never appear.
Stripe refunds are asynchronous. A refund is submitted to Stripe by a background job and may complete after a short delay; its final outcome appears once the job and webhook reconcile, not instantly in the UI.
